Window & Door Product Specifications

Review GNORD thermal break aluminium window and door specifications, including profile details, glazing options, application examples, and frame installation references.

Discuss Your Project

Thermal barrier aluminium windows and doors for residential and commercial applications

Window and Door Applications

GNORD products are suitable for residential architecture, mixed-use developments, hospitality projects, offices, high-street commercial facades, and glass-covered institutional or public buildings such as modern schools and universities.

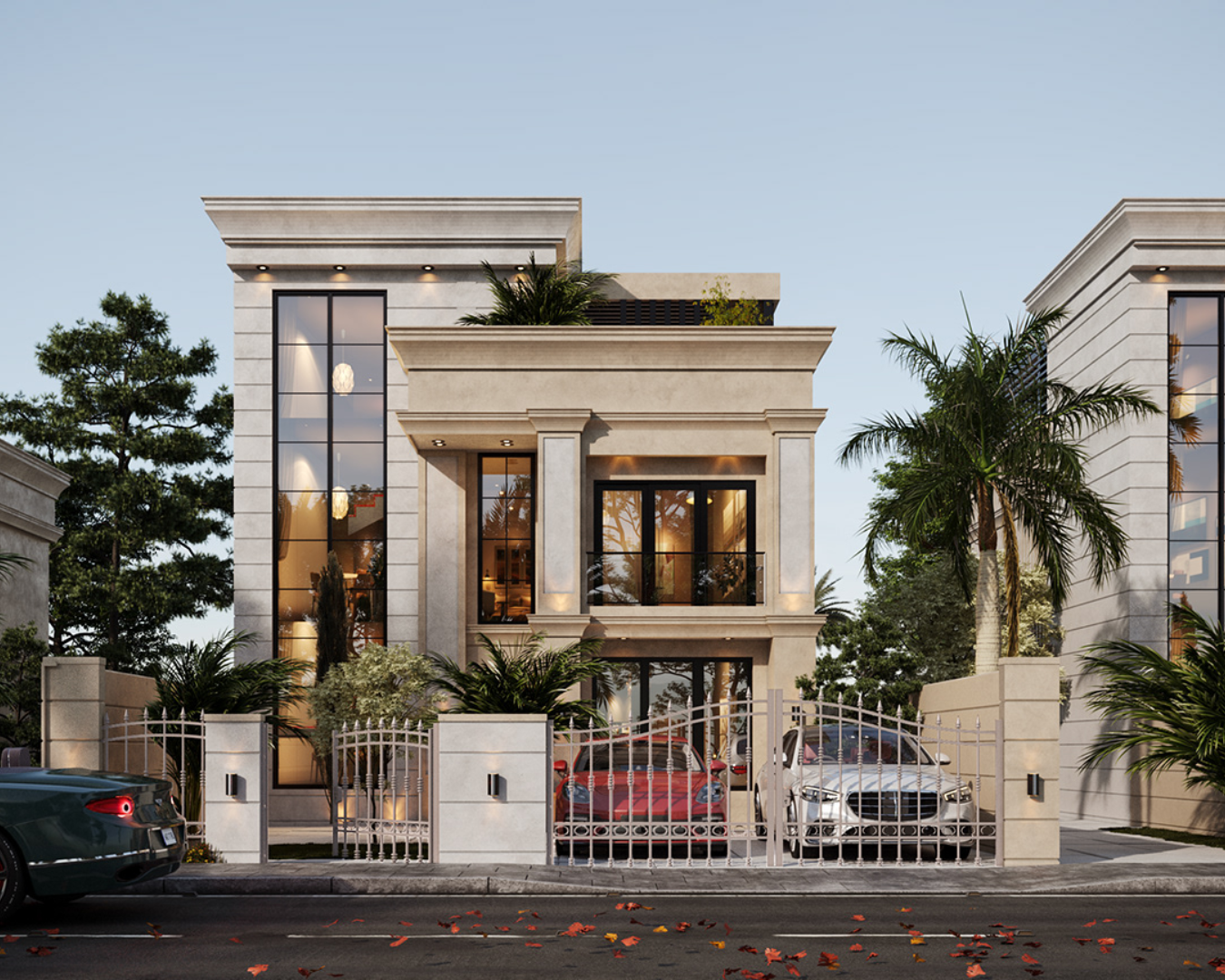

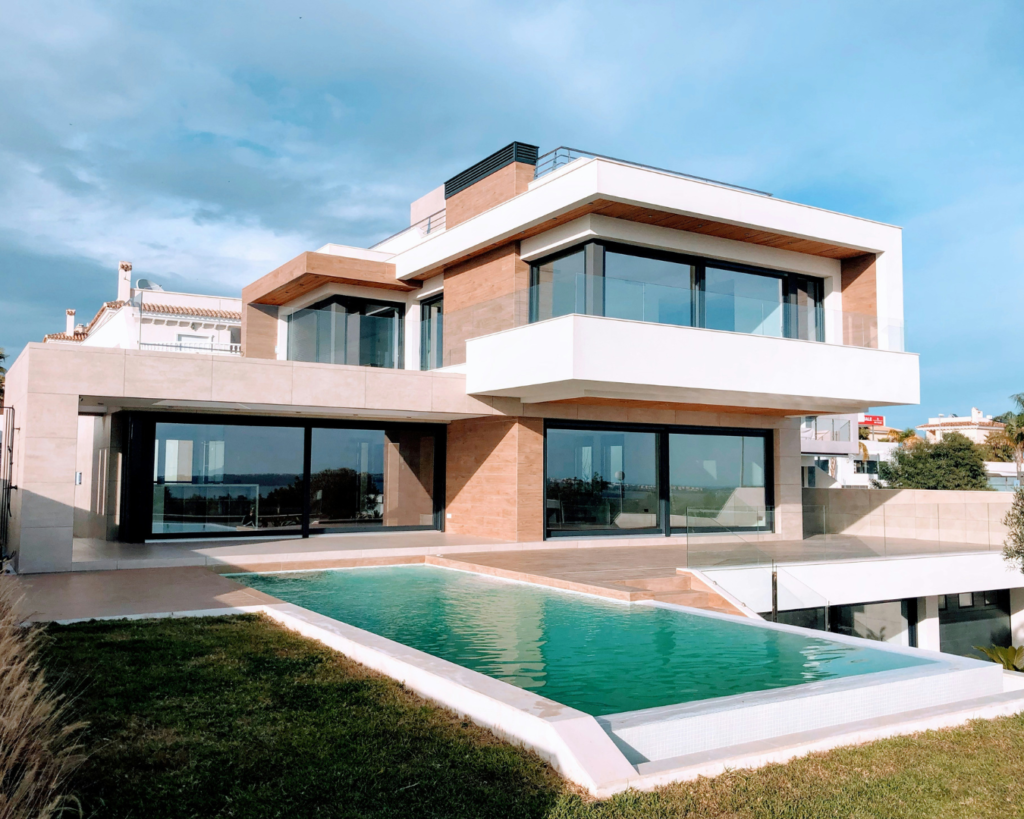

Traditional and contemporary villa with thermal break aluminium windows and doors

Traditional & Contemporary Villas

Aluminium profile glass windows and doors for classic villa elevations, modern villas, and private residences.

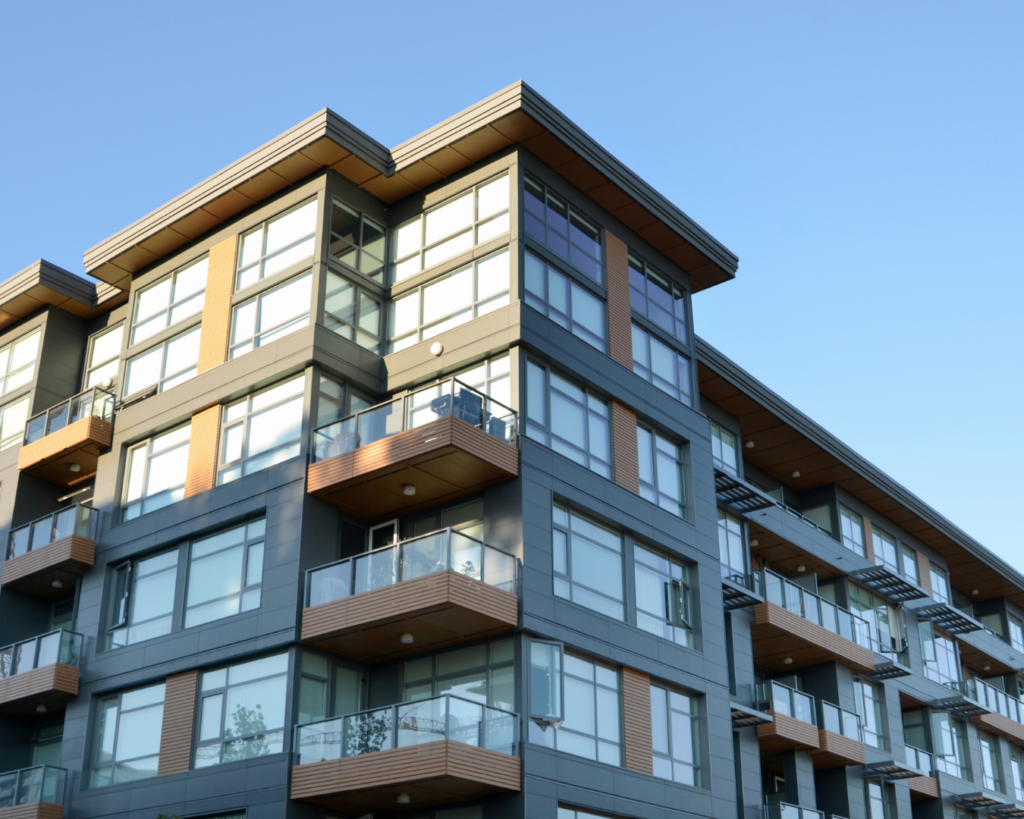

Residential complex with thermal break aluminium windows

Residential Complexes

Energy-conscious windows and doors for apartments and multi-family buildings.

Mixed-use building with aluminium windows and doors

Mixed-Use Buildings

Window and door systems for buildings that combine retail, office, and residential use.

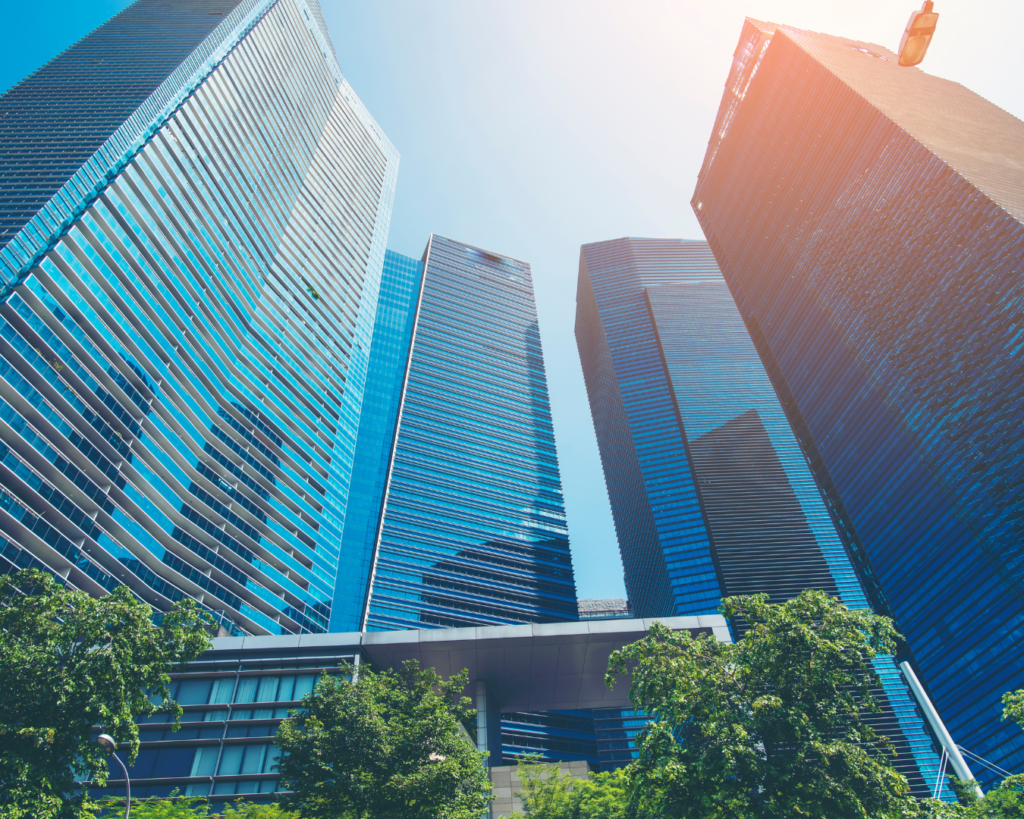

Office and hotel aluminium window and door systems

Office Buildings and Hotels

Thermal and acoustic performance for workspaces, guest rooms, lobbies, and shared areas.

High-street commercial aluminium window and door systems

High-Street Commercial Projects

Durable aluminium windows and doors for shops, showrooms, and street-facing facades.

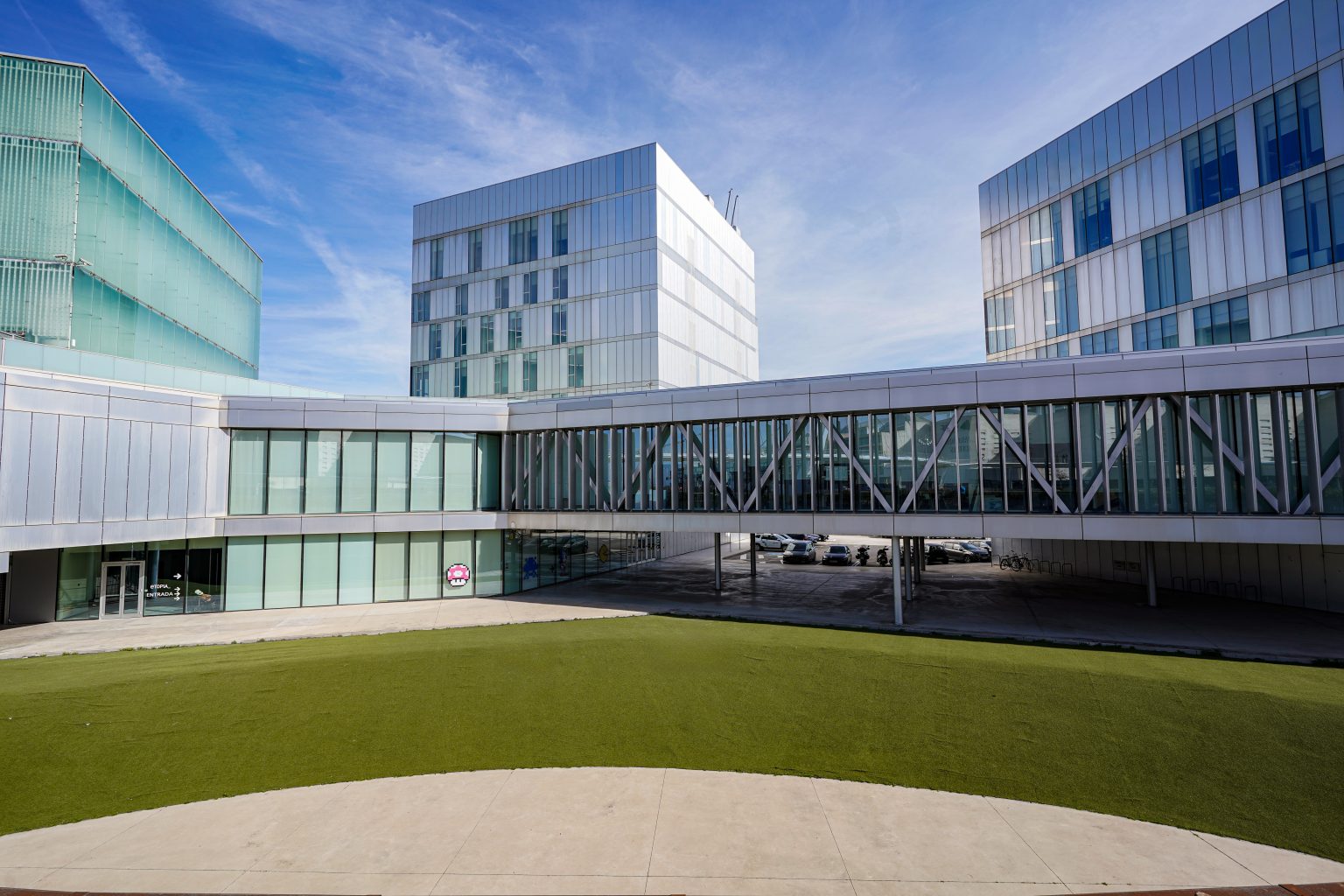

Modern school or university building with glass-covered aluminium window and door systems

Institutional and Public Buildings

Glass-covered aluminium window and door systems for schools, universities, libraries, and civic facilities that need daylight, durability, and energy performance.

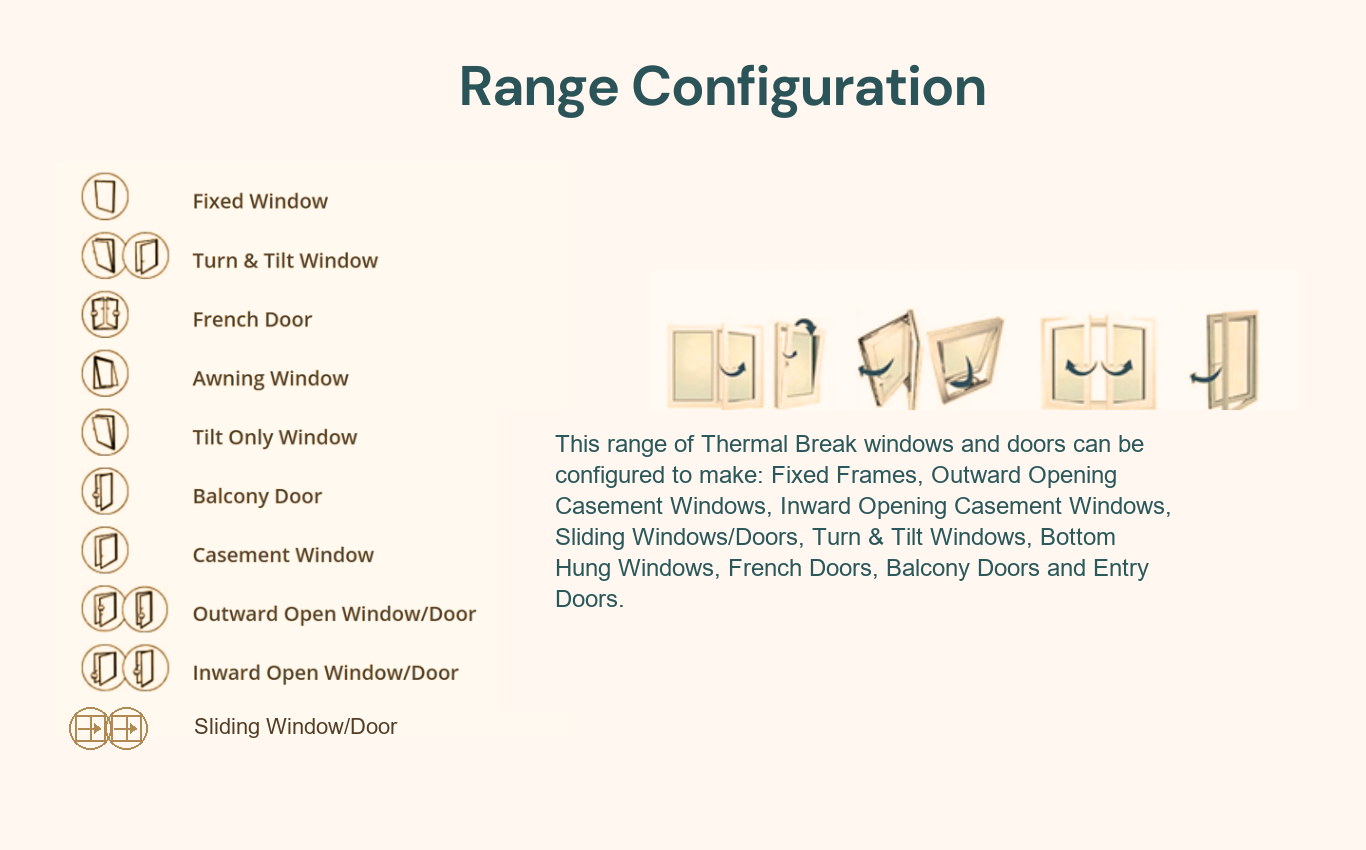

Range configuration for thermal break aluminium windows and doors including fixed window sliding window or door turn and tilt window French door awning window balcony door casement window and inward or outward opening windows and doors

Lifestyle Details

Folding bi-fold and concertina door detail with thermal break aluminium profile construction, insulated frame design, wide glass opening capability, and weather-resistant sealing for residential and commercial door systems.

Tilt and turn window detail using insulated aluminium frame profiles for flexible ventilation, improved thermal insulation, sound reduction, secure hardware operation, and efficient residential window performance.

Sliding window and door detail with insulated aluminium frame profile, smooth sliding operation, thermal break structure, weather sealing, and large glass panel support for balcony doors and modern facade openings.

Product Details

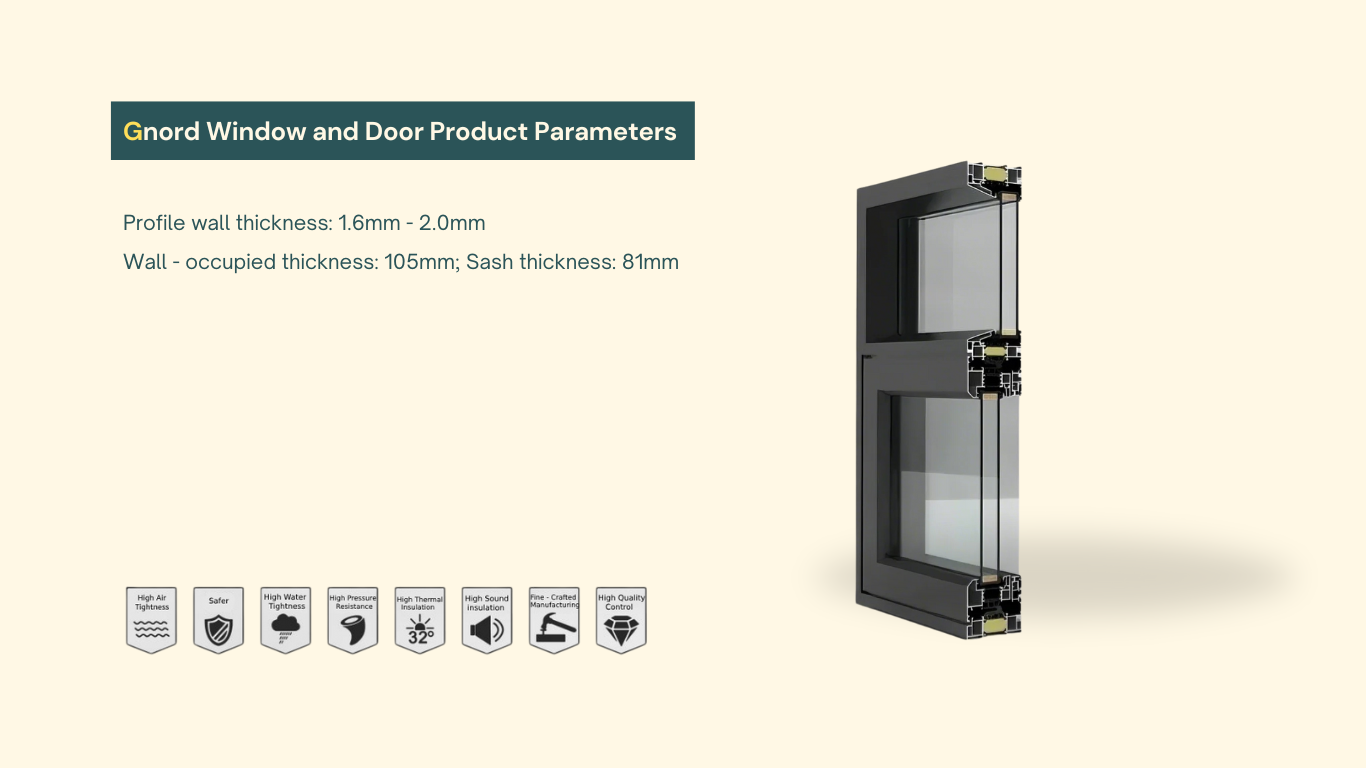

Fixed picture window profile dimensionsFixed picture window product parameters with profile wall thickness of 1.6 mm to 2.0 mm, wall-occupied thickness around 105 mm, sash thickness around 81 mm, large glass area support, and thermal break aluminium performance.

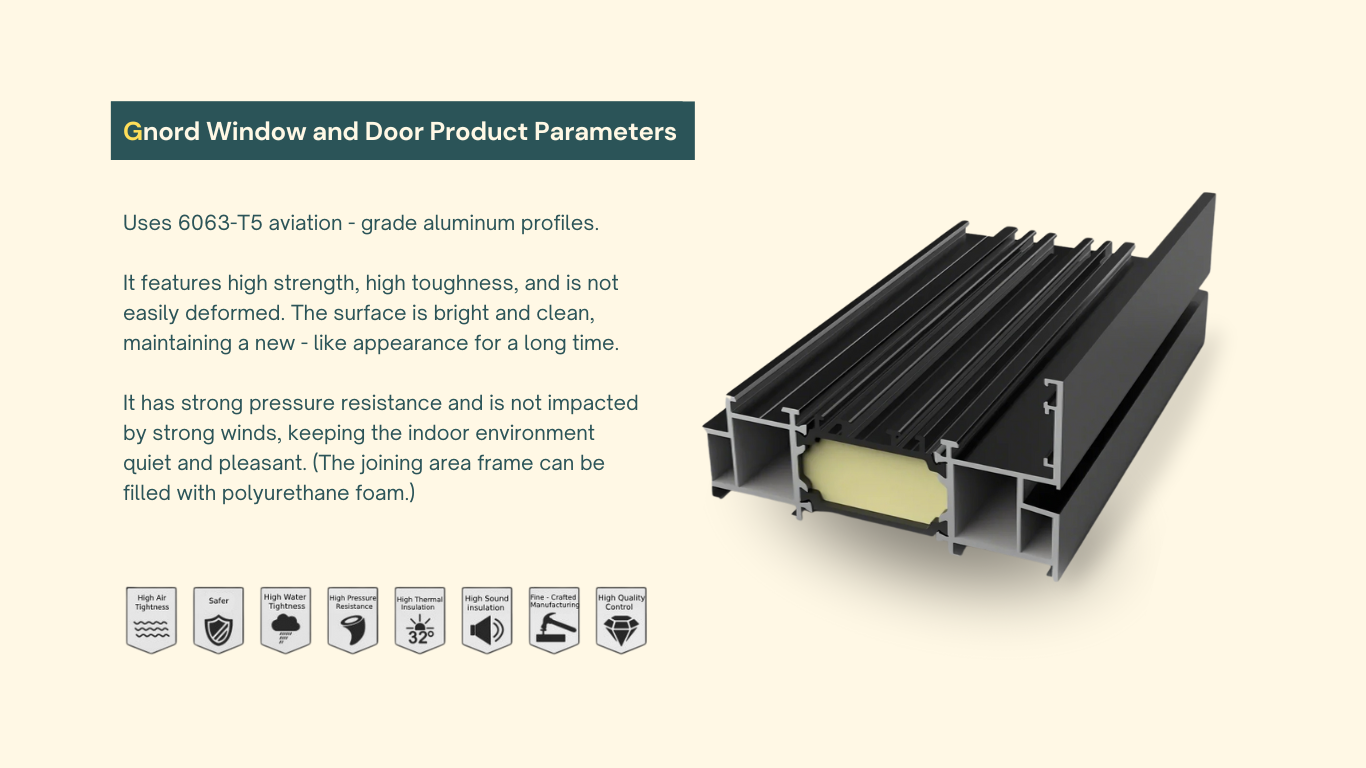

6063-T5 thermal break aluminium profileAluminium door product parameters using 6063-T5 aviation-grade aluminium profiles, high-strength thermal break profile construction, pressure resistance, bright clean surface finish, durable appearance, and polyurethane foam joining area options.

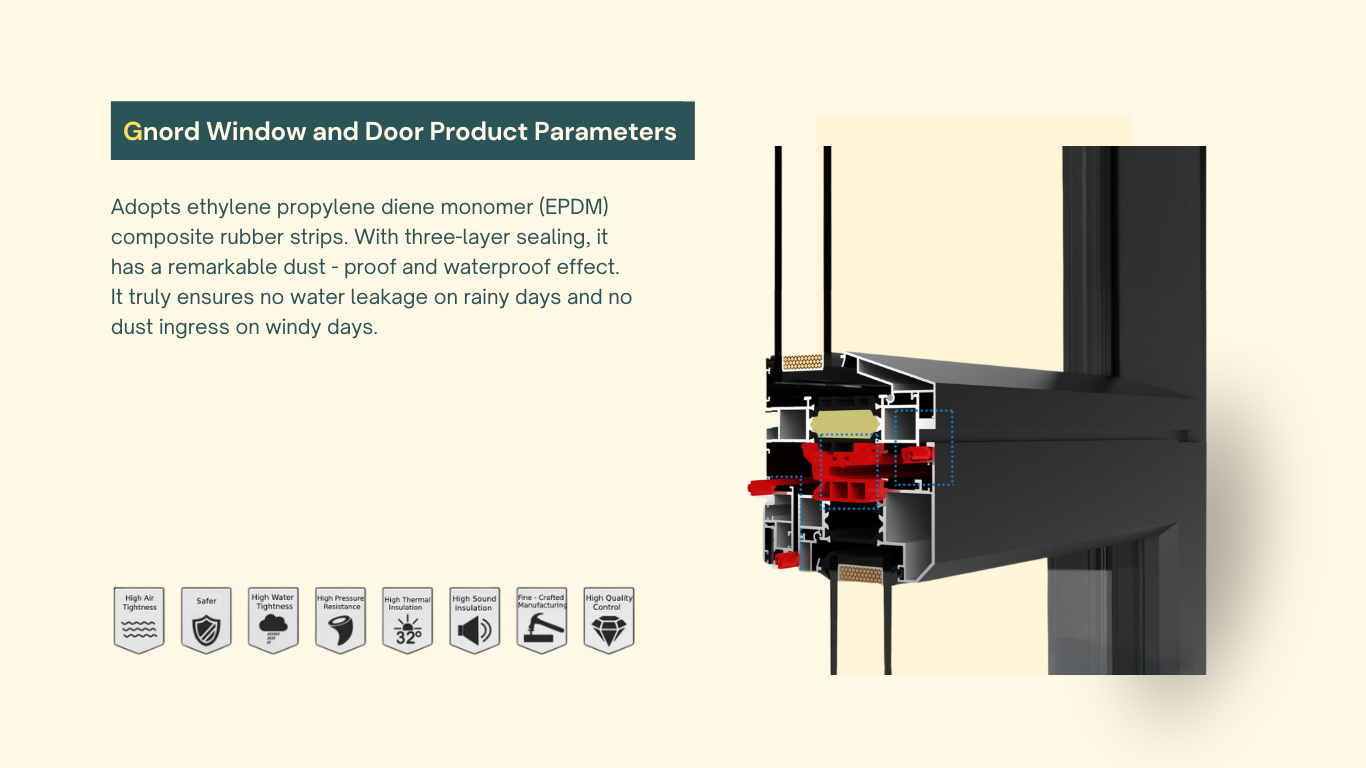

Villa window installation example with aluminium frames — **EPDM three-layer weather sealing**Villa window installation detail with EPDM composite rubber sealing strips, three-layer sealing, waterproof and rainproof performance, reduced air leakage, reduced dust ingress, and thermal break aluminium frame installation.

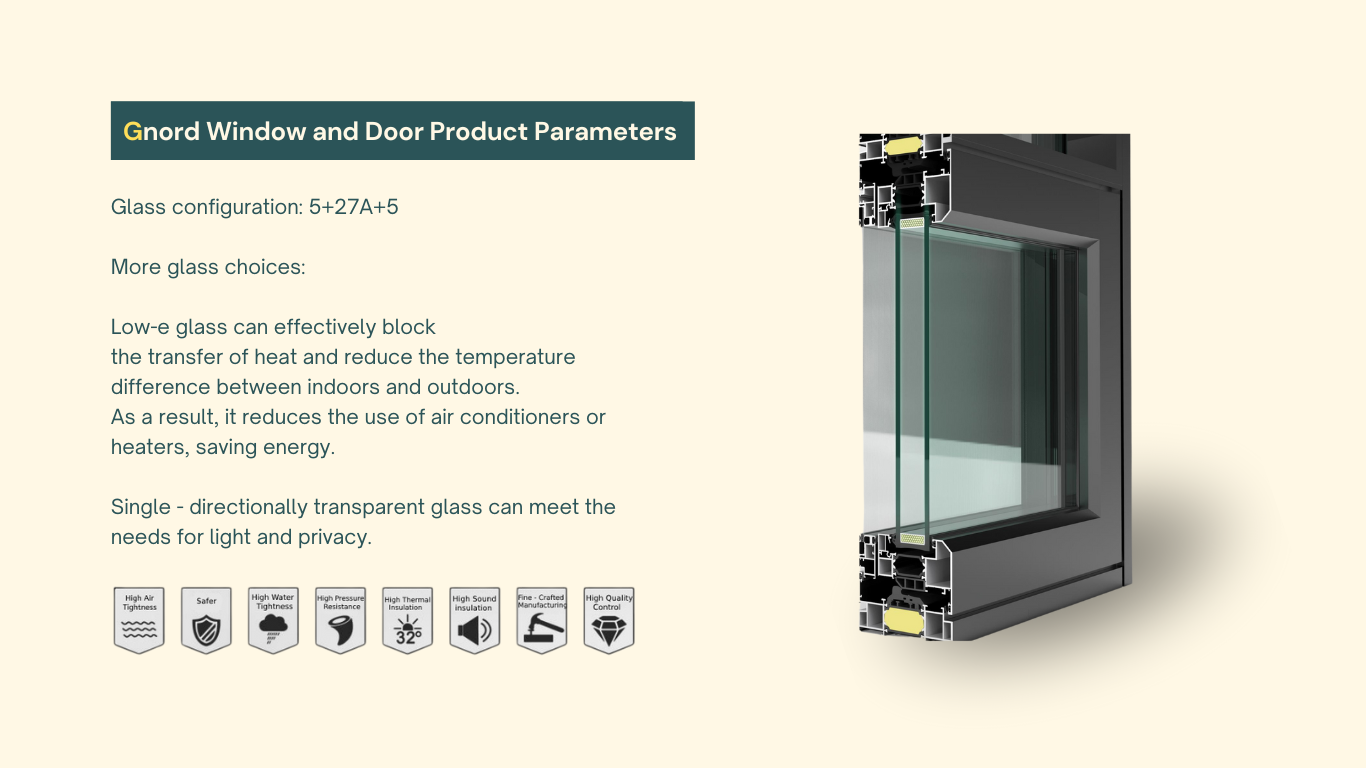

Residential window installation example with aluminium glazing — **Low-E insulated glass configuration**Residential window installation detail with glass configuration options including 5+27A+5, low-e glass for heat transfer control, reduced air-conditioning demand, transparent glass choices, and thermal break aluminium window glazing.

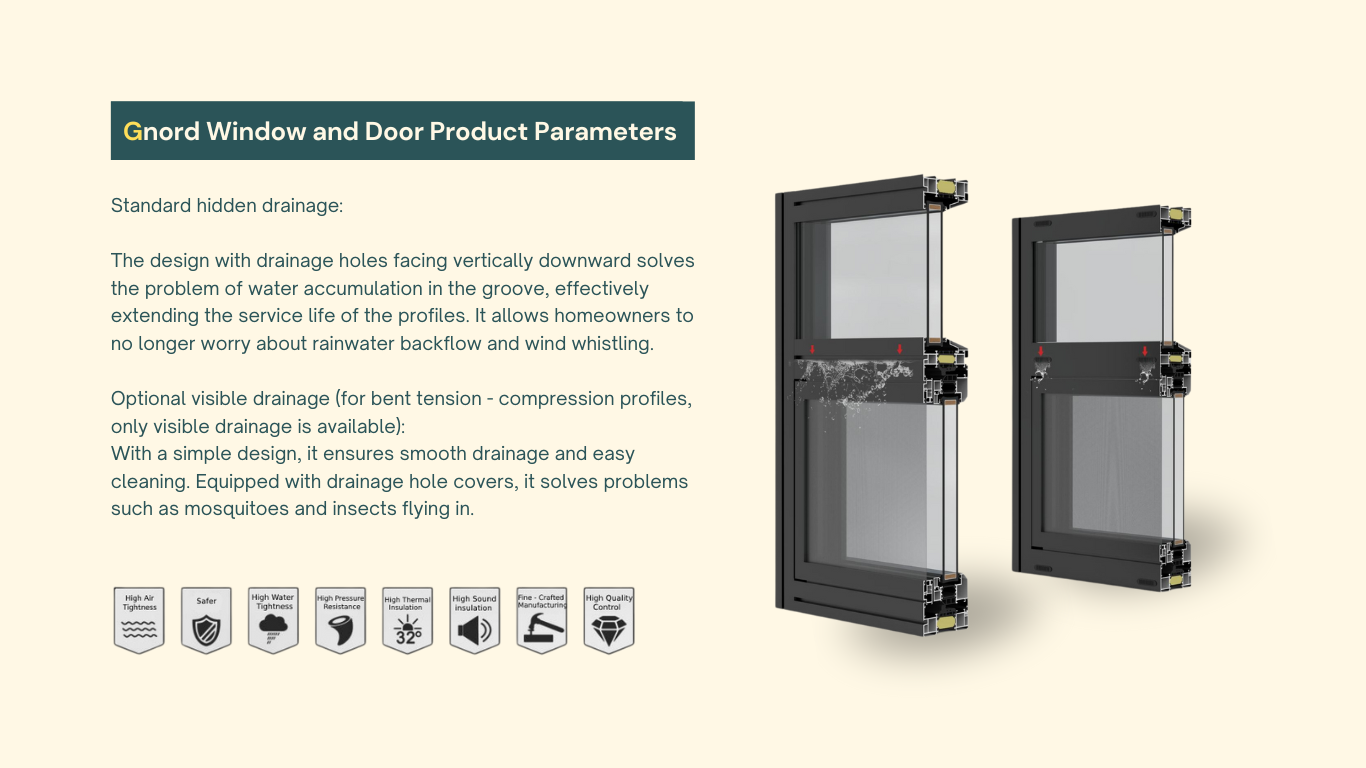

Commercial window installation example with aluminium glass facade — **Hidden drainage and rainwater control**Commercial window installation detail with standard hidden drainage, vertical drainage holes, concealed water discharge, rainwater backflow prevention, visible drainage options, smooth drainage, and mosquito or insect resistance features.

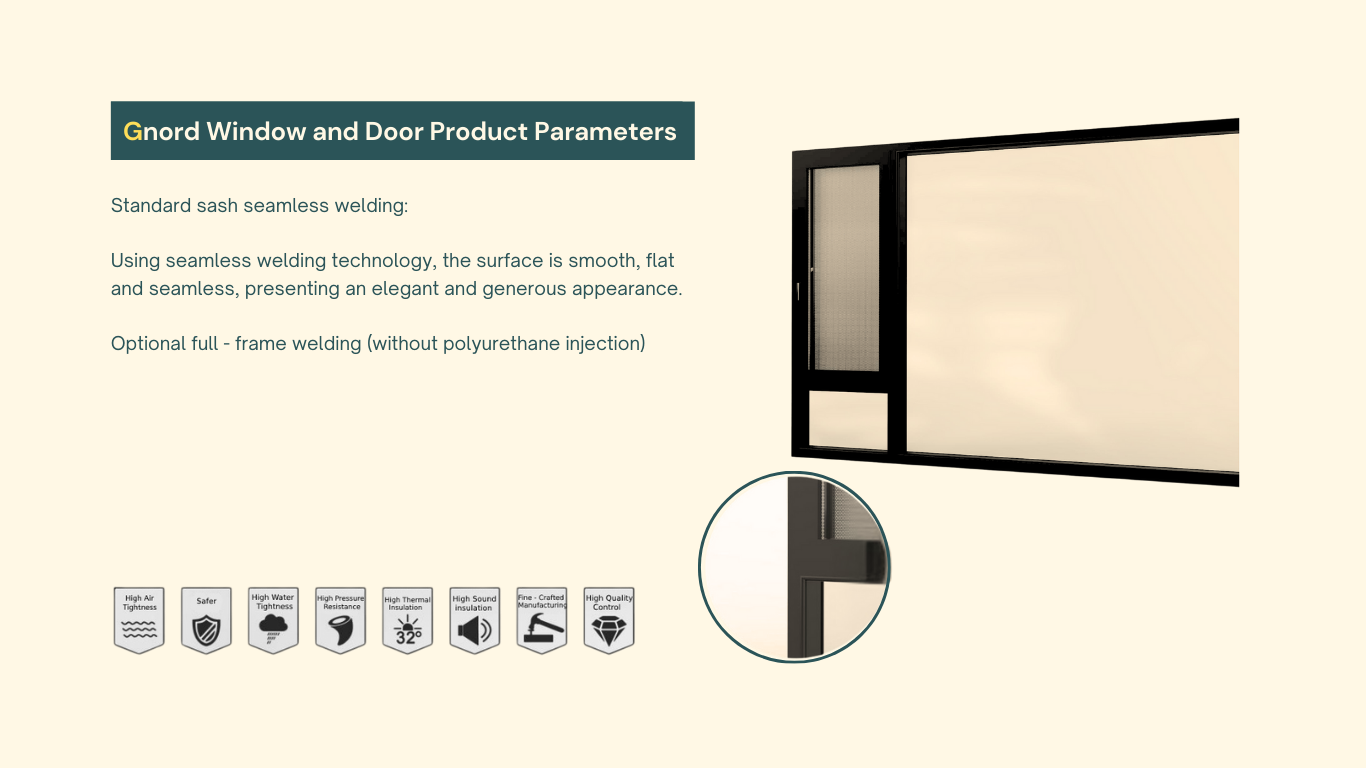

Balcony door and window installation example — **Seamless welded sash frame detail**Balcony door and window installation detail with standard sash seamless welding, smooth flat surface finish, durable appearance, optional full-frame welding without polyurethane injection, and clean thermal break aluminium construction.

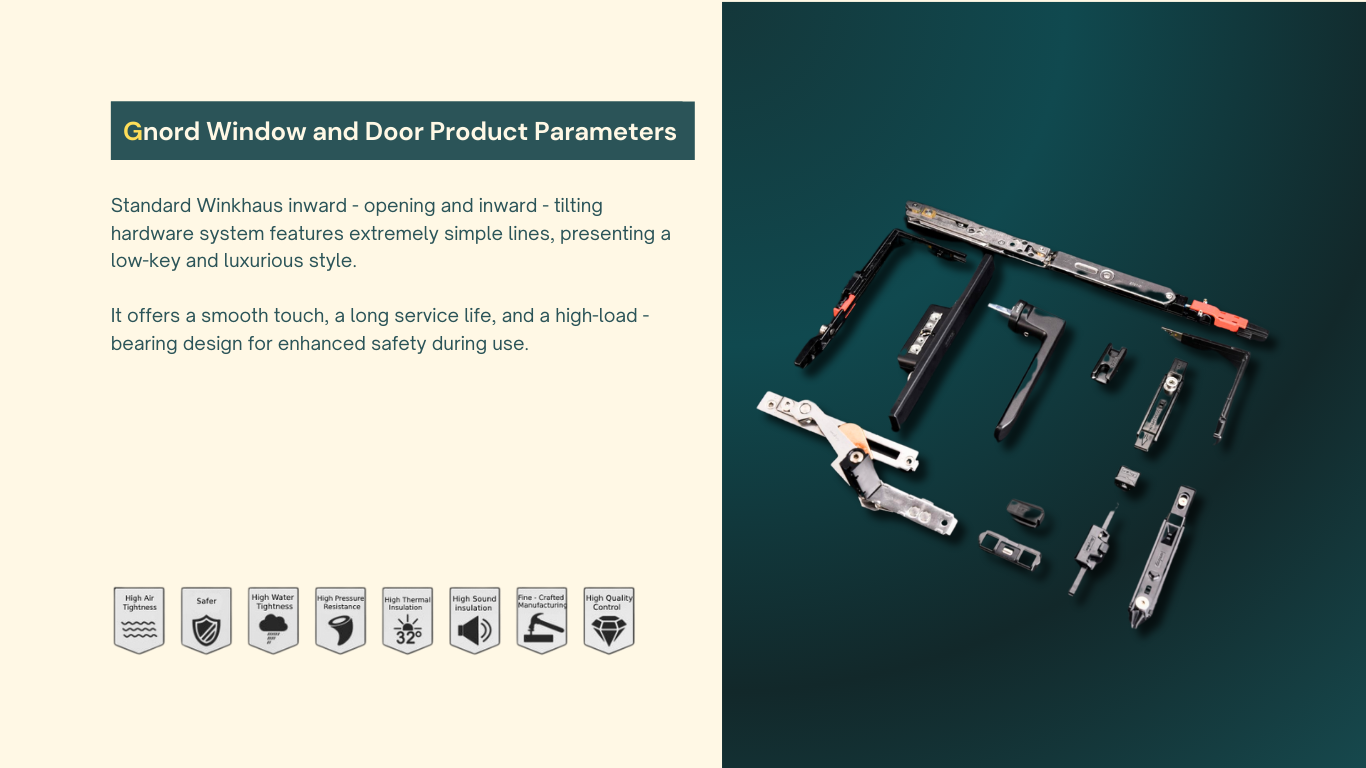

Large glass aluminium window installation example — **Inward-opening and tilt hardware**Large glass window installation detail with inward-opening and inward-tilting hardware system, smooth touch operation, long service life, high-load bearing design, and enhanced safety for large thermal break window systems.

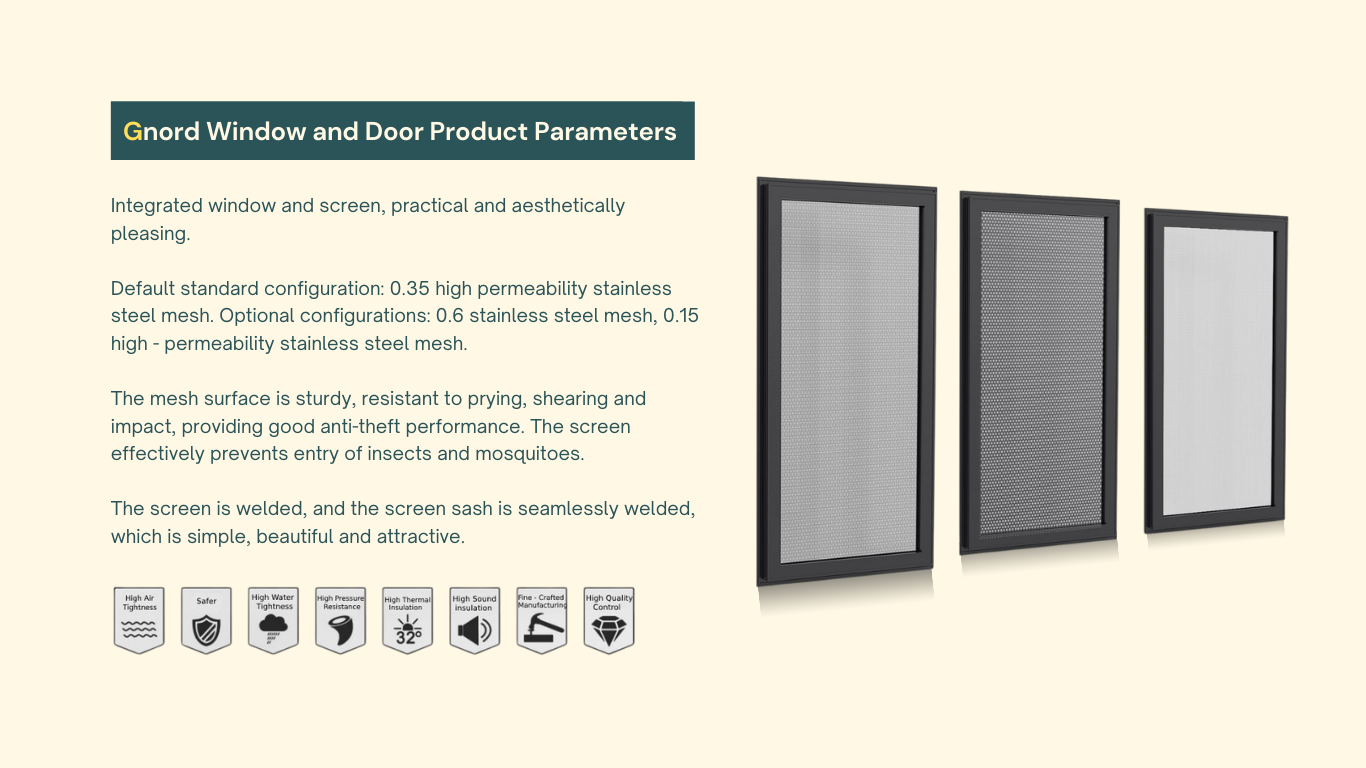

Modern building aluminium window installation example — **Integrated window screen options**Modern building window installation detail with integrated window screen options, 0.35 high-permeability stainless steel mesh, optional 0.6 stainless steel mesh, resistant screen surface, anti-prying performance, and seamless screen sash welding.

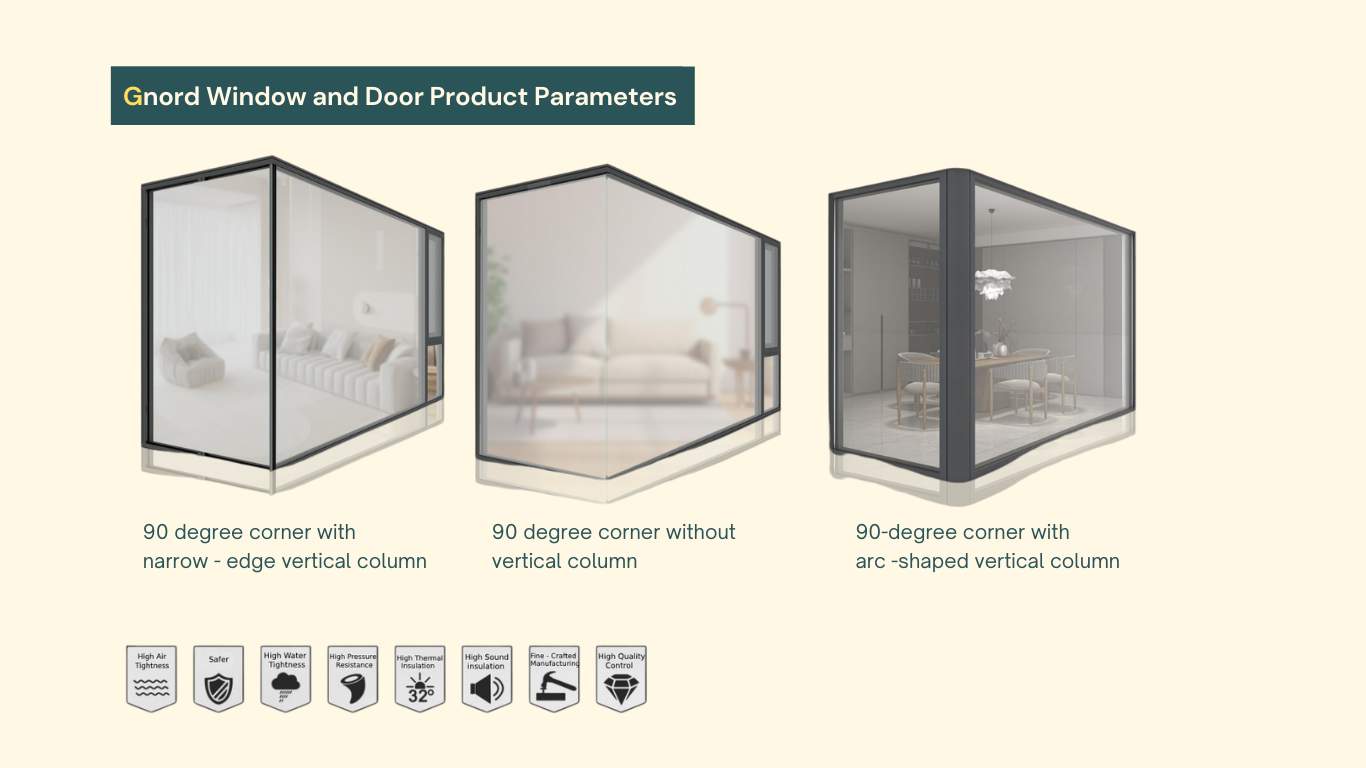

Aluminium window frame detail example — **90-degree aluminium frame corner options**Aluminium window frame detail showing 90-degree corner configurations with narrow-edge vertical column, no vertical column, and arc-shaped vertical column options for thermal break window and door frame design.

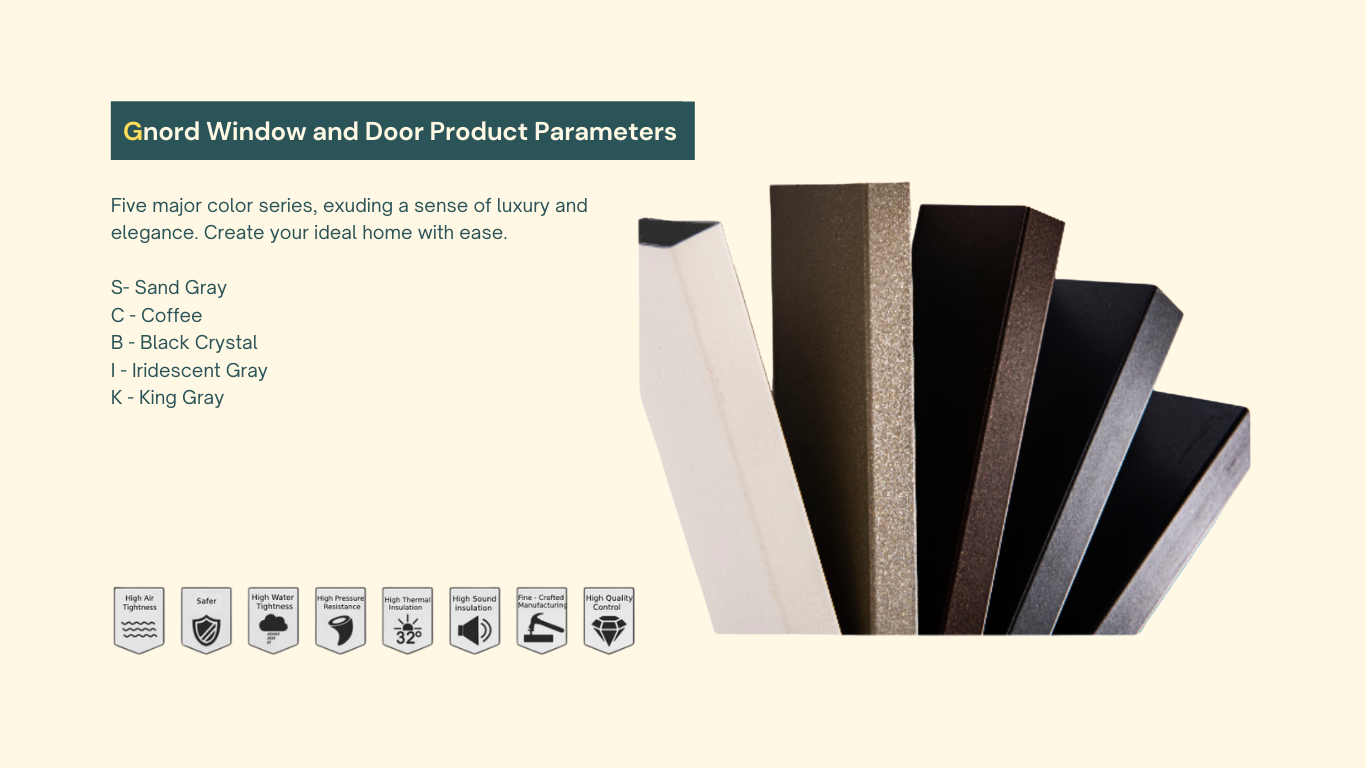

Thermal break window hardware detail example — **Aluminium frame colours and finishes**Thermal break window hardware and colour detail with major frame colour options including S sand grey, C coffee, B black crystal, I iridescent grey, and K king gray for luxury aluminium window and door appearance.
